AUTOAUTH Registration Instructions
In 2018, Fiat Chrysler Automobiles USA (FCA) introduced the Security Gateway Module (SGW) to block unauthorized access to certain vehicle electronic systems. According to FCA, the SGW was designed to restrict "the ability of non-registered and non-authenticated users to perform intrusive diagnostics, such as bi-directional controls." As a result, users are unable to directly clear diagnostic trouble codes (DTCs) or conduct any bi-directional control tests, including actuation, relearn, and calibration on vehicles equipped with the SGW.
GEARWRENCH users can now access the SGW module and perform previously restricted operations by registering with AUTOAUTH's authentication service, without needing any extra accessories. Users can register through AUTOAUTH's web-based portal, choose the desired package, and add their GEARWRENCH diagnostic tool.
Only available in the US, Canada, and Mexico
For more answers to AUTOAUTH's frequently asked questions, including pricing information, please visit https://info.autoauth.com/contact/#faq_section.
GEARWRENCH AUTOAUTH Ready Tools
ACCOUNT REGISTRATION

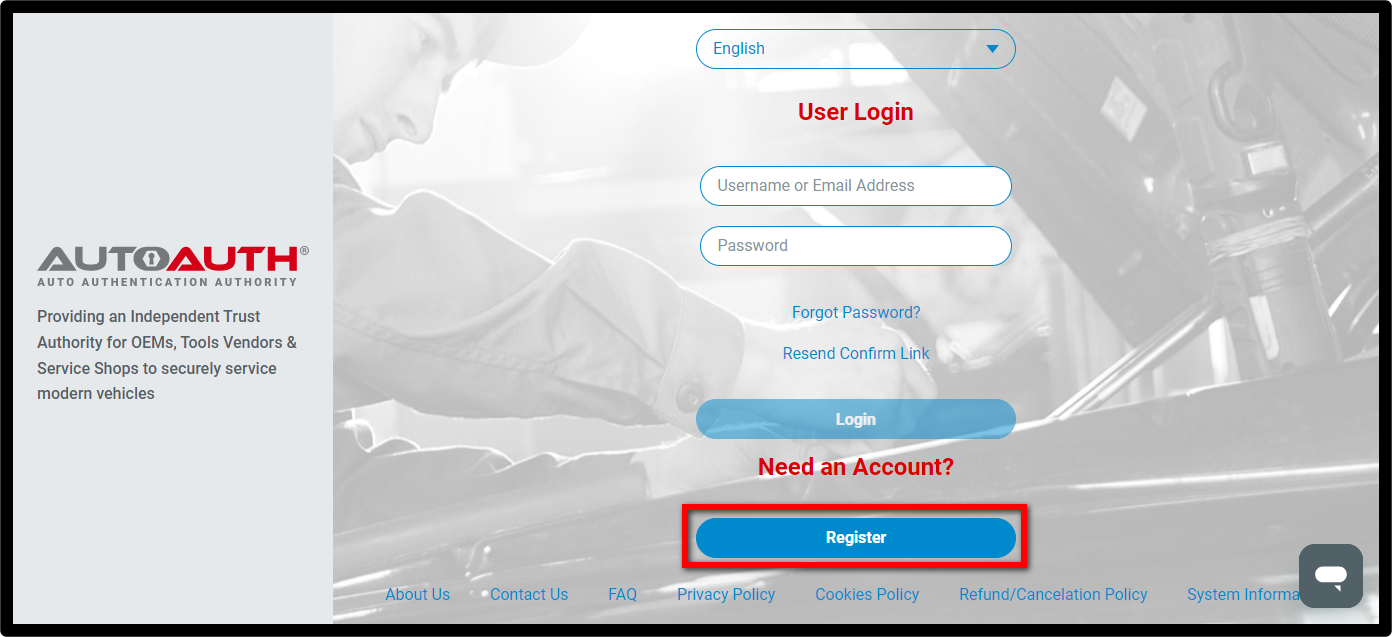

- Visit https://webapp.autoauth.com/ >> Click Register.

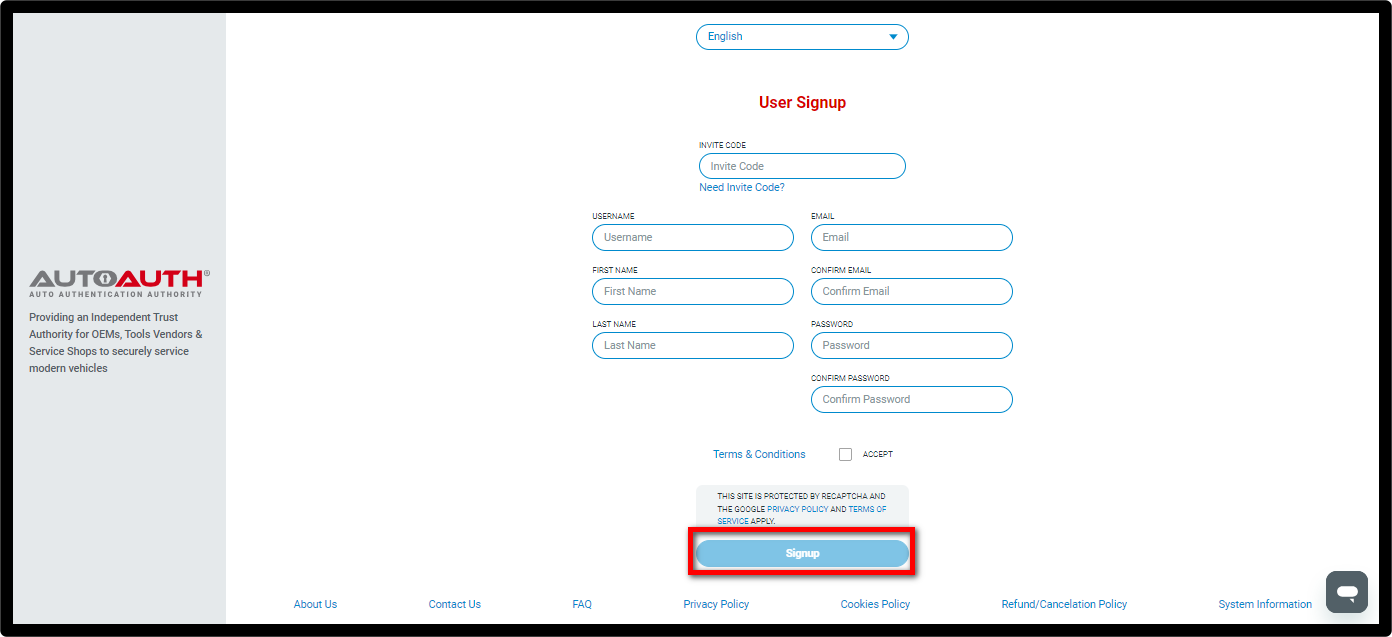

2. Complete and submit the User Signup
3. An email confirmation will be sent to you. Once the email is received, follow the instructions in the email and verify your email address.

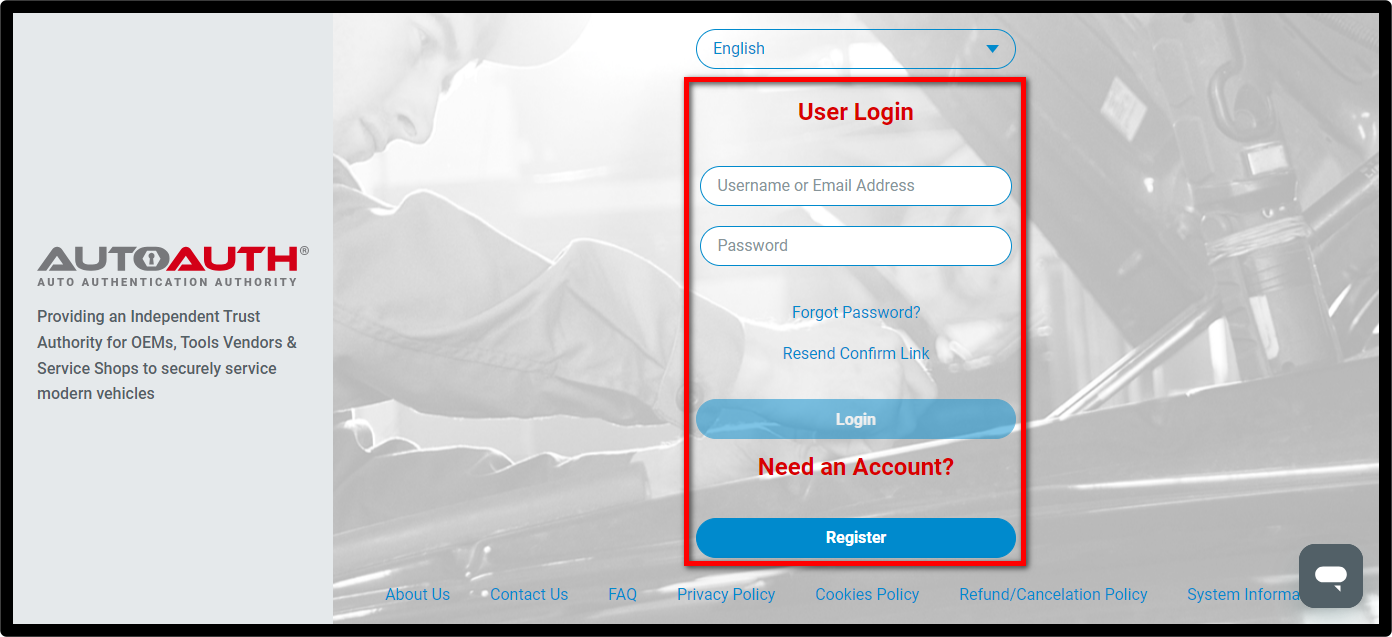

4. Log in to the AUTOAUTH website.

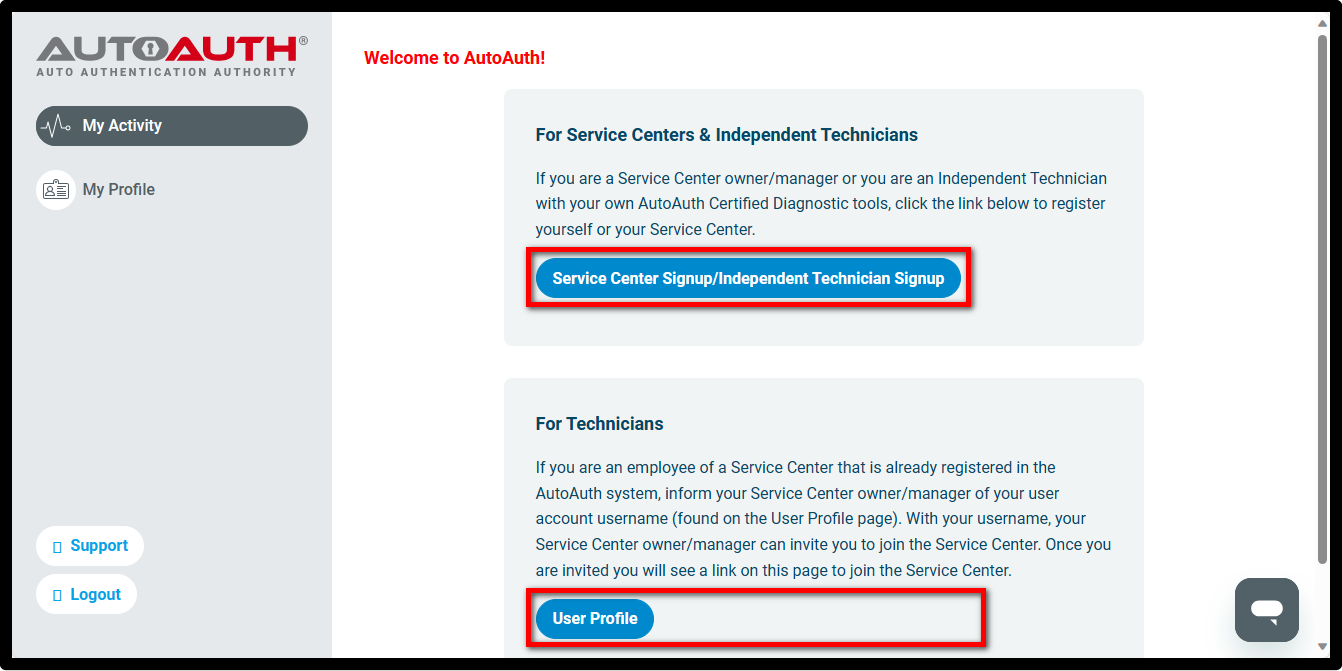

5. Click Service Center Signup/Independent Technician Signup to register and set up your user profile, shop information, and payment settings.
TECHNICIAN NOTICE: If your shop already has an account with a GEARWRENCH Diagnostic tool, the shop account administrator can invite you to join. After being invited, you'll see a link to join the shop on the AUTOAUTH website. Once added, you'll automatically have access to the shop's registered devices, with no additional device setup needed on the AUTOAUTH website.

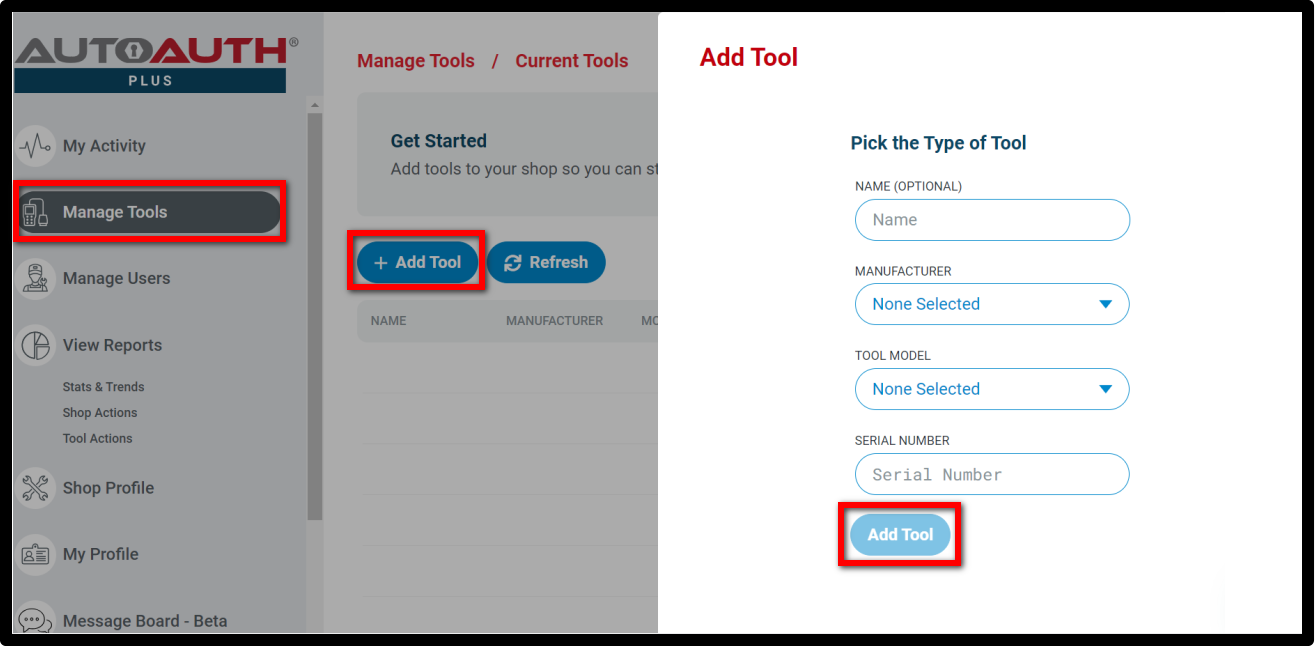

6. Select Manage Tools from the left menu then select Add Tool. Fill in the following when asked:
- Manufacturer - Select GEARWRENCH Co
- Tool Model - Select ALL MODELS
Serial Number - Enter the serial number listed on the back of your diagnostic tool. (Example: Enter GW90-000001 if your serial number is GW90-000001
